RP736L

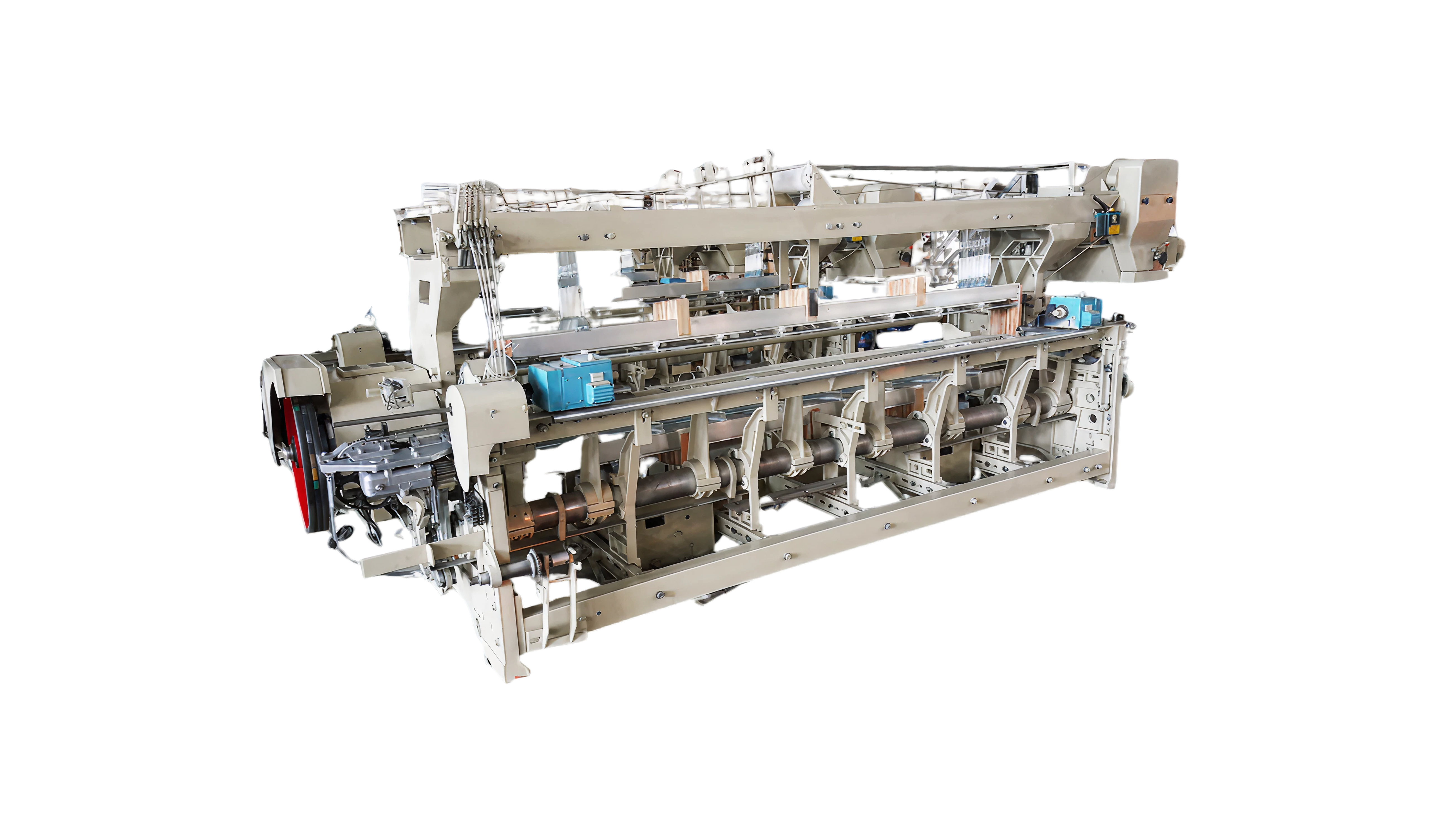

RP736L Low-Speed Loom - electronic, dobby, precision for patterned fabrics.
Gallery
Technical
Specifications
Basic Info
Reed Width
200–360 cm
Motor Power
1.8–2.2 kW
Shedding
Electronic dobby, 20 or 24 levers
Heald Frames
Max 16 pcs
Yarn Range
Cotton 7Ne–60Ne, Wool 12Nm–100Nm, Chemical Fiber 900D–60D
Additional Specifications
Weft Insertion
6-connector system
Color Selector
4–6 colors electronic
Beam Flange
φ600 or φ680 mm
Warp Stop
6-line electronic
Weft Stop
Piezoelectric ceramic
Machine Weight
2,400–2,900 kg
Dimensions
4,100 × 1,800 × 1,700 mm
35-Point
Inspection Report
Every machine undergoes our comprehensive 35-point inspection process ensuring quality and reliability.
Frame & Structure
No cracks or deformations found
Air Jet System
Cleaned and pressure tested
Warp & Weft Mechanism
All components functional
Reed & Heald
Replaced with new components
Electrical System
All circuits tested and working
Safety Features
All safety mechanisms operational
Drive Motor
15kW motor in perfect condition
Control Panel
All sensors and controls working
