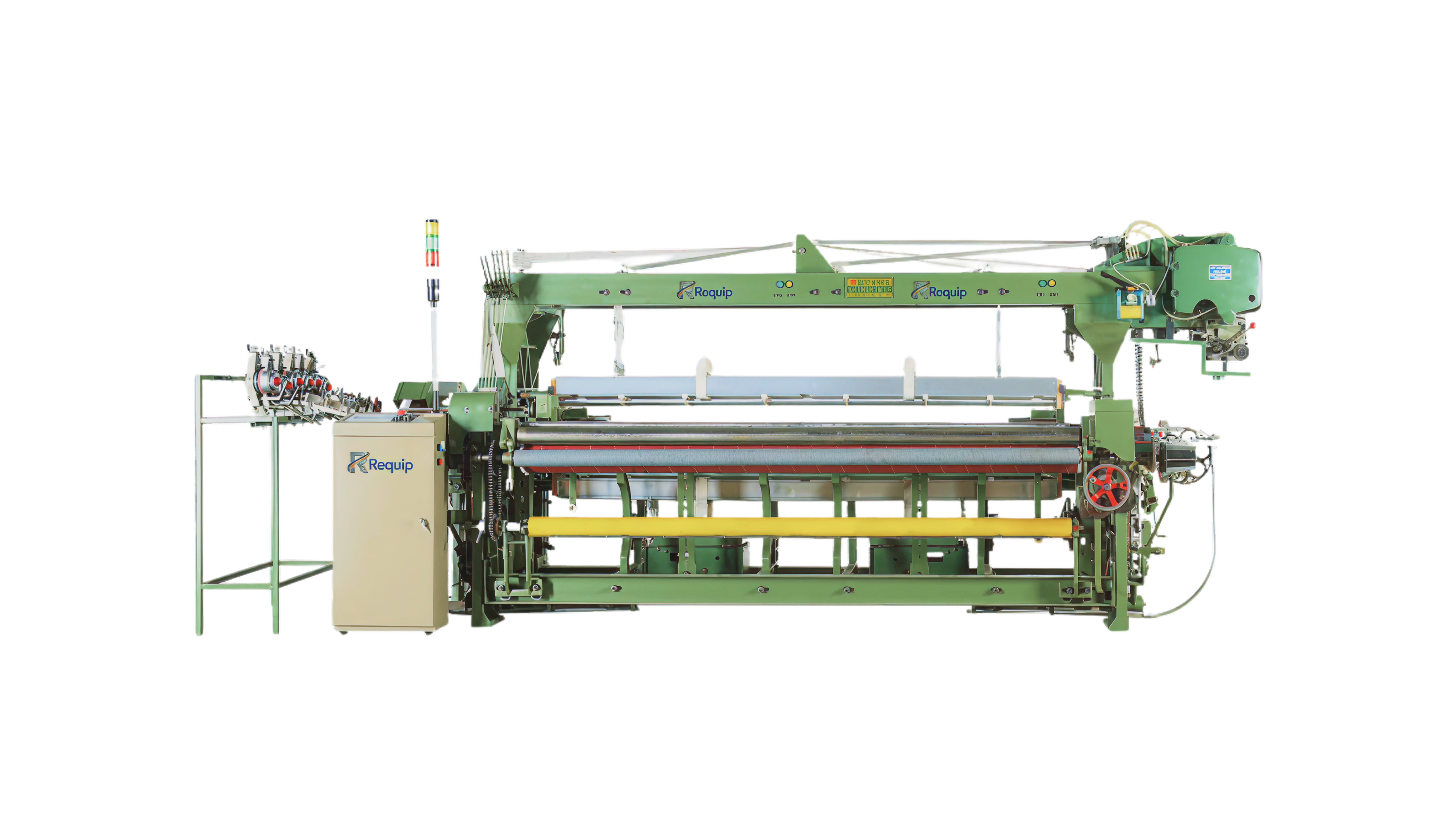

RP787L
RP787L Low-Speed Rapier, Loom - consistent, reliable, built for range.

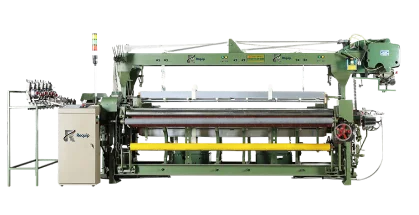

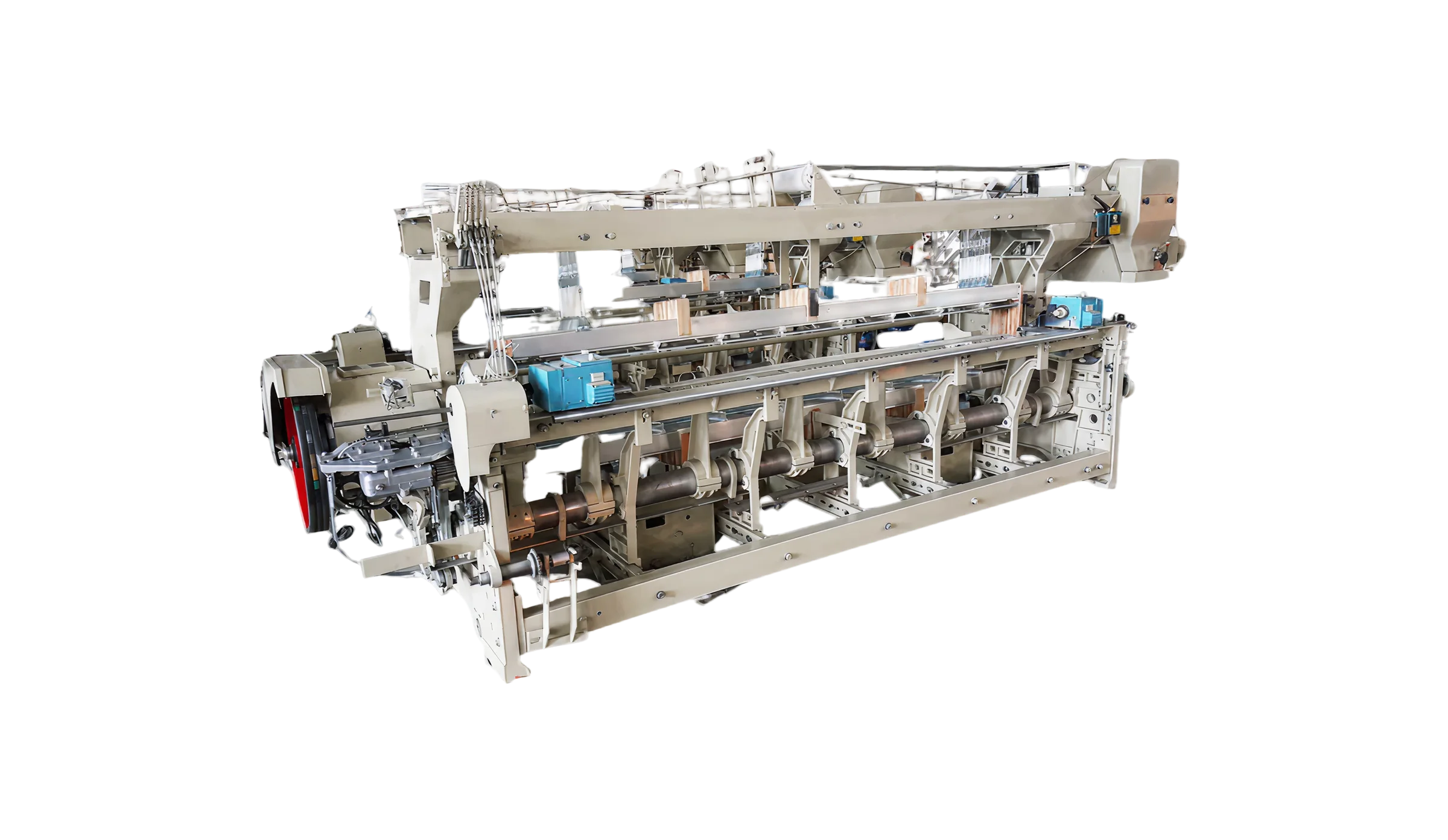

Gallery
Technical
Specifications
Basic Info
Reed Width
150–700 cm
Motor Power
1.5 kW
Shedding
Top-mounted multi-arm, 20 or 24 blades
Yarn Range
Cotton 7Ne–60Ne, Wool 12Nm–100Nm, Synthetic 900D–60D
Color Selection
4–6 color weft selection
Additional Specifications
Heald Frames
Max 16 pcs
Warp Beam Disc
φ680mm or φ800mm
Roll Diameter
φ400mm
Warp Stop
6-line electronic
Weft Stop
Piezoelectric ceramic
Machine Weight
2,200–3,500 kg
35-Point
Inspection Report
Every machine undergoes our comprehensive 35-point inspection process ensuring quality and reliability.
Frame & Structure
No cracks or deformations found
Air Jet System
Cleaned and pressure tested
Warp & Weft Mechanism
All components functional
Reed & Heald
Replaced with new components
Electrical System
All circuits tested and working
Safety Features
All safety mechanisms operational
Drive Motor
15kW motor in perfect condition
Control Panel
All sensors and controls working
